Description

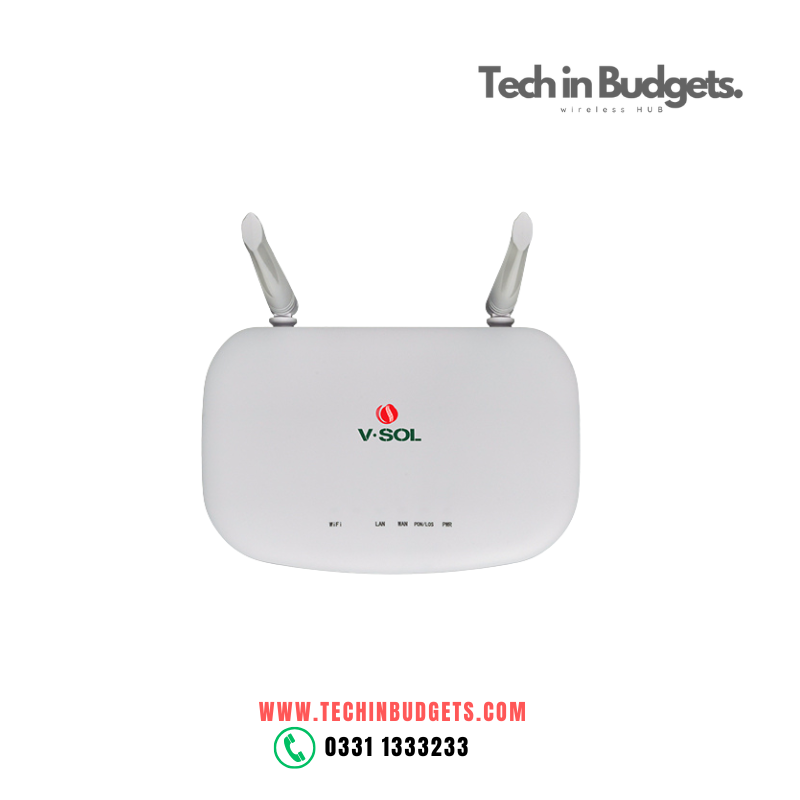

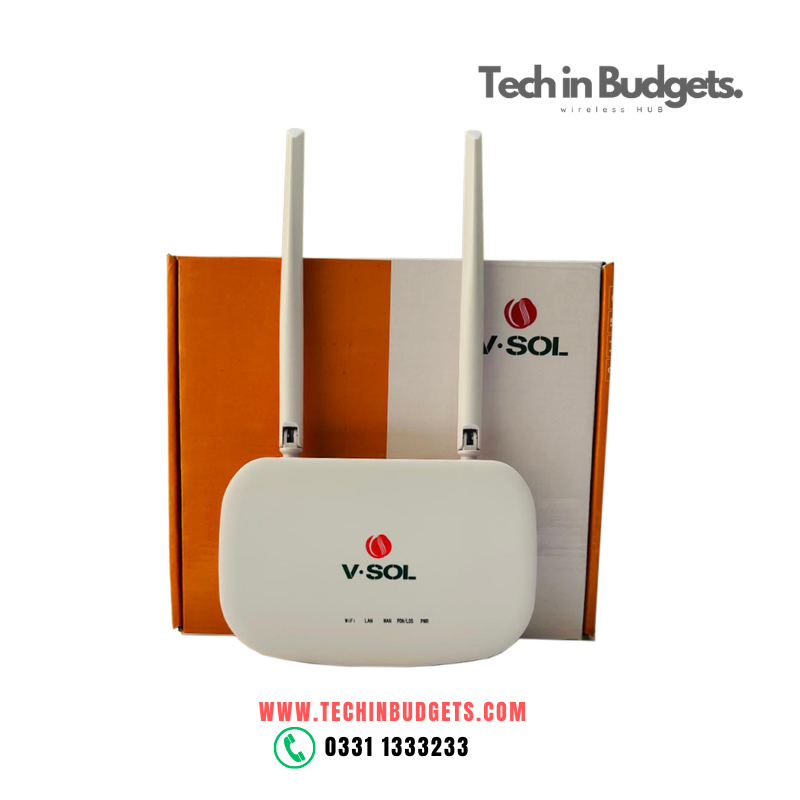

VSOL Router V2801RGW 1GE Router WiFi ONU
The VSOL Router V2801RGW 1GE Router WiFi ONU is a reliable and compact fiber networking device designed for FTTH (Fiber-to-the-Home) broadband solutions. Powered by a stable Realtek chipset, this router delivers efficient performance and high-speed connectivity for both wired and wireless networks. It is designed to support modern fiber internet services, making it an ideal choice for homes, apartments, and small offices that require stable internet access.
This router features an EPON PON interface with symmetric speeds up to 1.25 Gbps, ensuring fast and consistent fiber communication between the optical network and connected devices. The SC single-mode optical connector provides reliable signal transmission with wavelengths of Tx 1310nm and Rx 1490nm, which are standard for fiber optic communication.
For wired connectivity, the device includes one Gigabit Ethernet (1GE) LAN port that supports 1000 Mbps auto-adaptive speed with full-duplex and half-duplex modes. This allows users to connect computers, smart TVs, network switches, or gaming consoles with stable high-speed internet.
The VSOL Router V2801RGW 1GE Router WiFi ONU also supports IEEE 802.11b/g/n wireless standards, providing Wi-Fi speeds up to 300 Mbps with 2R2T wireless technology. This enables multiple devices such as smartphones, laptops, tablets, and smart home devices to connect simultaneously while maintaining smooth and stable wireless performance.
The router includes five LED indicators that display the operational status of the device, including power, PON connection, and LAN activity. It operates with a 12V external power adapter and consumes ≤3W of power, making it energy-efficient for continuous use.
With its compact design (120 × 78 × 28 mm) and lightweight build of 0.25 kg, the device is easy to install and maintain. It is designed to work reliably in various environmental conditions, supporting operating temperatures from -5°C to +55°C with 10–90% non-condensing humidity.
Overall, the VSOL V2801RGW 1GE Router WiFi ONU is a practical and cost-effective solution for delivering stable fiber internet connectivity with both wired Gigabit networking and wireless access for everyday internet usage.
Technical Specifications
| Technical Item | Description |
|---|---|
| Model | V2801RGW |
| Main Chip | Realtek |
| PON Interface | 1 EPON interface, SC single-mode/single-fiber, symmetric 1.25 Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical Interface | SC connector |
| LAN Interface | 1 × 1000 Mbps auto-adaptive Ethernet port, RJ45, Full/Half Duplex |
| WLAN | IEEE 802.11b/g/n, 2R2T, up to 300 Mbps |
| Indicators | 5 LED indicators (Power, PON, LAN status) |
| DC Power Supply | +12V external AC-DC power adapter |
| Power Switch | 1 |
| Power Consumption | ≤3W |
| Operating Temperature | -5°C to +55°C |
| Operating Humidity | 10% – 90% (non-condensing) |
| Storage Temperature | -30°C to +60°C |
| Storage Humidity | 10% – 90% (non-condensing) |
| Dimensions | 120 × 78 × 28 mm |
| Net Weight | 0.25 kg |
