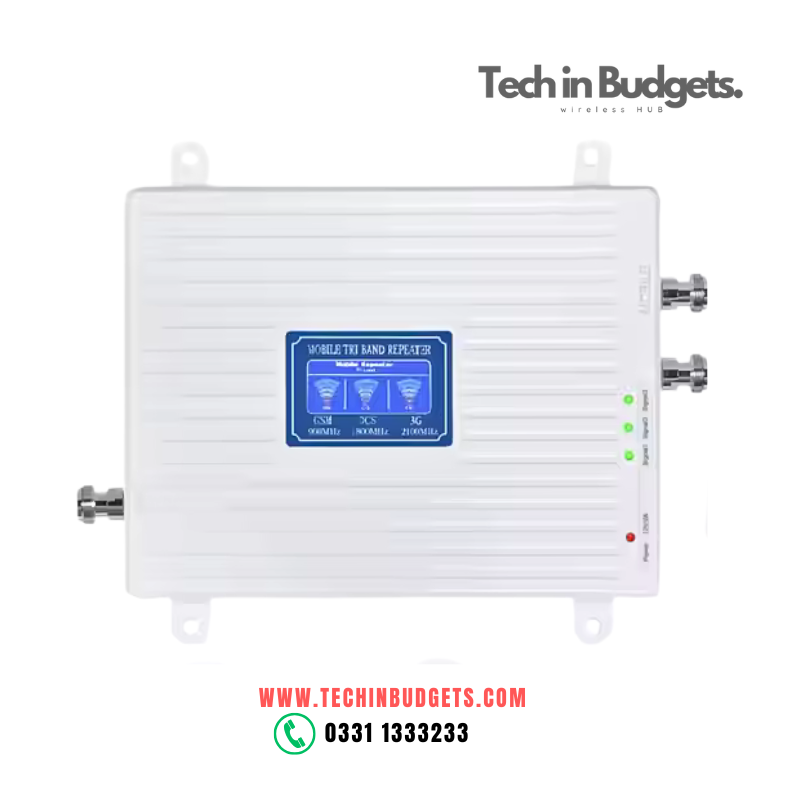

Dual Port Tri-Band Mobile Signal Repeater – 2G/3G/4G with LCD Display

The Dual Port Tri-Band Mobile Signal Repeater is the perfect solution for homes, offices, and commercial spaces struggling with poor communication due to weak or unstable signals.
It enhances your indoor electromagnetic environment without disruption, ensuring crystal-clear calls and stable 4G LTE data.

Equipped with ALC (Automatic Level Control) technology, it automatically adjusts its range for optimal performance. mobile phone signal booster tri band repeater economical and reliable design includes a compact size, built-in lightning protection, and an LCD display for easy monitoring. With dual output ports, mobile phone signal booster supports multiple indoor antennas, extending coverage to more rooms or floors. Installation is quick and simple, delivering strong, consistent coverage with low radiation for safe use.

Key Features

• Dual Port Output: Connect two indoor antennas for extended coverage across larger areas.

• Tri-Band Support: Works with GSM900MHz, DCS1800MHz, and WCDMA2100MHz networks.

• Automatic Level Control: Optimizes signal strength automatically.

• LCD Display: Real-time status and signal level monitoring.

• Compact & Durable: ABS + metal body with built-in lightning protection.

• Safe & Energy Efficient: Low radiation output for user safety.

Specifications

• Main Material: ABS + Metal

• Color: White

• Uplink Frequency: 890–915MHz / 1710–1785MHz / 1920–1990MHz

• Downlink Frequency: 935–960MHz / 1805–1880MHz / 2110–2180MHz

• Power: -70~-40dBm / FA (1.23MHz)

• Gain: 60±3dB

• Max Output Power: +23dBm / ±3dBm total power

• Impedance: 50Ω

• Isolation: >70dB

• Power Supply: AC 110–220V

• Connector Type: N female

• Repeater Size: 200 × 150 × 20mm (7.9 × 5.9 × 0.8 in)

• Screen Size: 44 × 19mm (1.7 × 0.7 in)

• Cable Length: 10 meters (black cable)

• Package Size: 400 × 300 × 190mm (15.7 × 11.8 × 7.5 in)

• Weight: 2920g (6.4 lb)

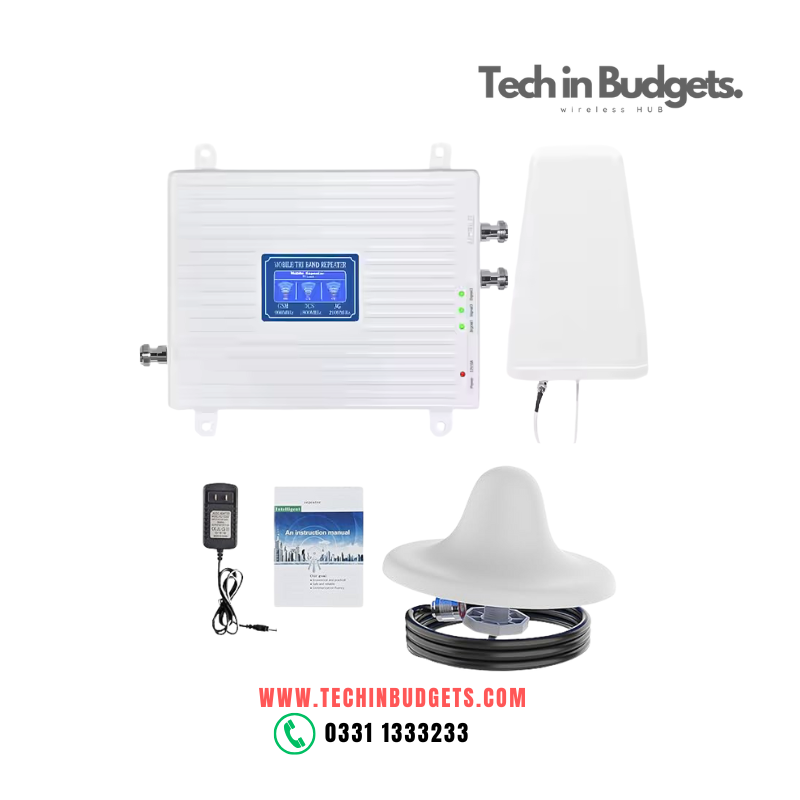

Package Includes

• 1 × Dual Port Tri-Band Repeater (GSM900, DCS1800, WCDMA2100)

• 1 × Plug

• 1 × LPDA Outdoor Antenna

• 1 × Indoor Ceiling Antenna

• 1 × 10m Black Cable

• 1 × Bag of Mounting Accessories

How to Use

1. Position the Booster in the area where you use your phone most frequently.

2. Install the Outdoor Antenna in a location with a strong signal.

3. Connect the Antennas to the dual ports using the provided cables.

4. Power Up by plugging in the booster.

5. Enjoy Improved Signal for calls and data.
