Description

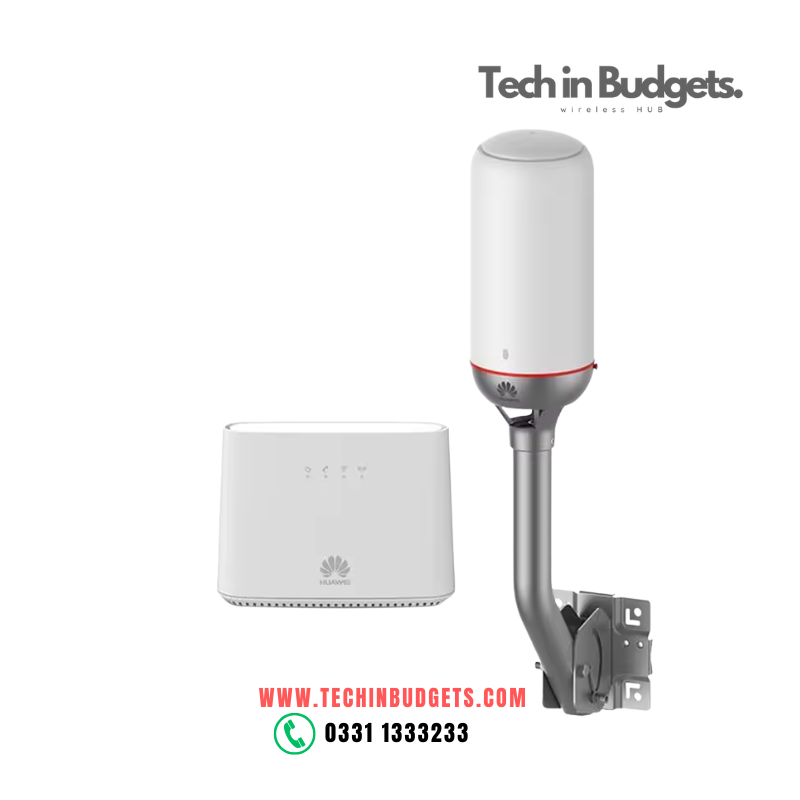

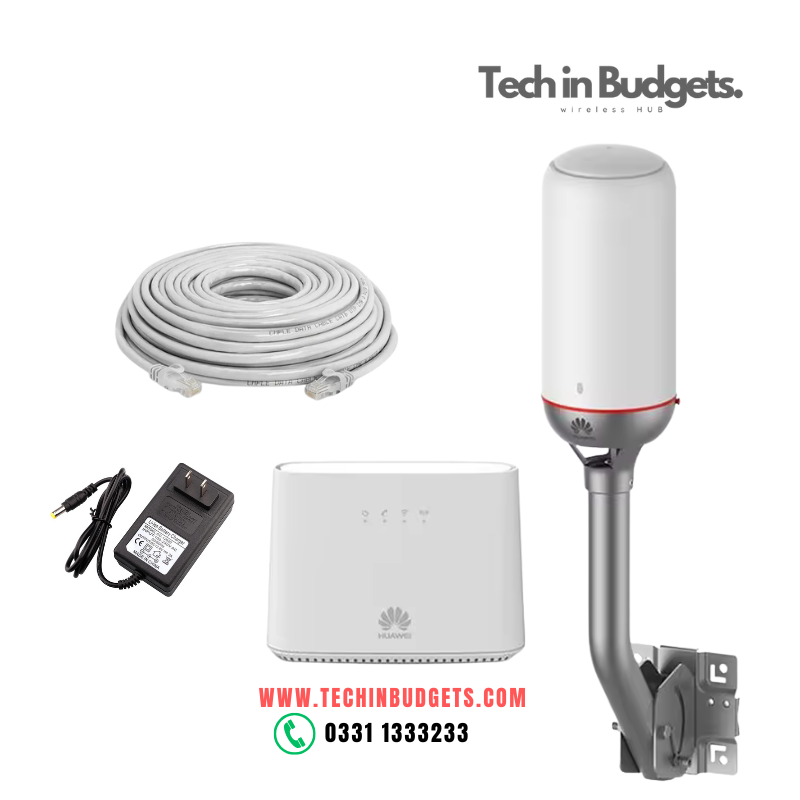

Huawei LTE CPE B2368-66 with Stand

The Huawei LTE CPE B2368-66 (B2368) with wall mount stand is a high-performance LTE wireless gateway designed for multi-user connectivity. It combines outdoor and indoor units (ODU + IDU) to deliver powerful LTE access, Wi-Fi coverage, and advanced networking features.

System Overview

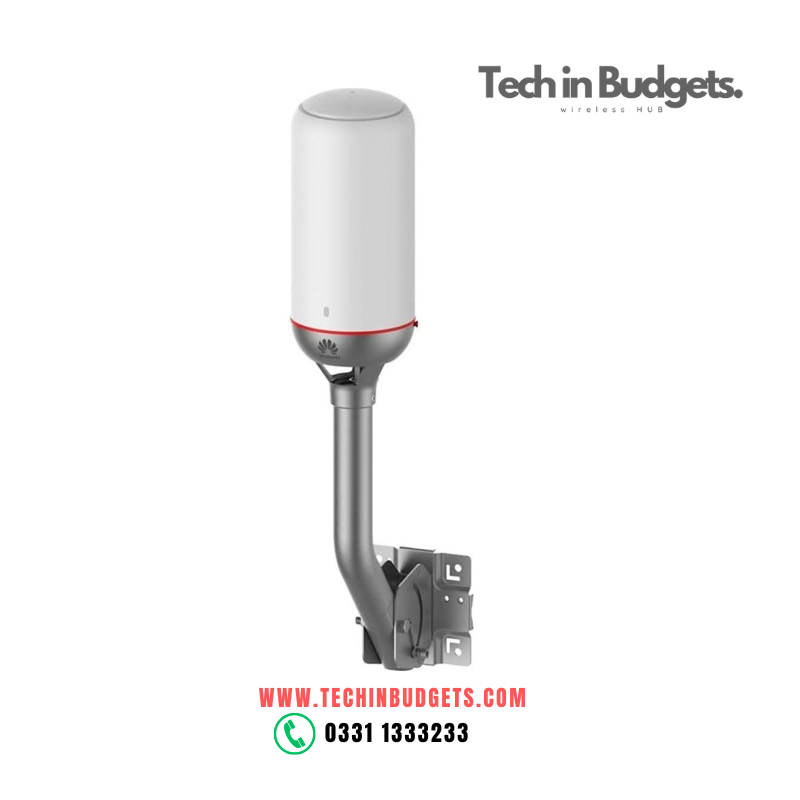

• ODU (Outdoor Unit): Handles LTE wireless access.
• IDU (Indoor Unit): Provides routing, Wi-Fi, and Ethernet connectivity.

Supported Services

• High-speed data services
• VoIP (Voice over IP) telephony
• Wi-Fi services (802.11ac/b/g/n) with WPA/WPA2 security
• VPN services (L2/L3)
• IP pass-through and multi-APN support
• Firmware over-the-air (FOTA) updates
• Local management and maintenance functions

Key Features

• LTE Advanced Connectivity
  • DL: 4×4 MIMO + 2CC CA, UL: 2CC CA + 64QAM
  • LTE TDD DL 4×4 MIMO and 2CC carrier aggregation (up to 40 MHz, contiguous or non-contiguous)
  • LTE FDD 4×4 MIMO (Band 3/7) and 2×2 MIMO (Band 1/8/20)
  • Supports LTE FDD+TDD 2CC CA up to 40 MHz
  • Maximum speeds:
    • TDD: 420 Mbps DL / 30 Mbps UL
    • FDD: 584 Mbps DL / 150 Mbps UL
• Networking
  • Integrated 3-port Gigabit Ethernet switch
  • Auto-negotiation and MDIX auto-detection
  • High-performance Wi-Fi access point (802.11ac/b/g/n)
• Voice over IP (VoIP)
  • SIP-compliant high-quality voice services
  • 1 voice line + support for IAD connection for additional voice ports
  • Multi-APN support with dedicated VoIP APN

Highlights

• LTE Cat-12 DL / Cat-13 UL performance
• Dual-unit design (ODU + IDU) for optimized outdoor signal reception and indoor distribution
• Supports multiple services: data, voice, VPN, and advanced routing
• Flexible networking with advanced security mechanisms
