Description

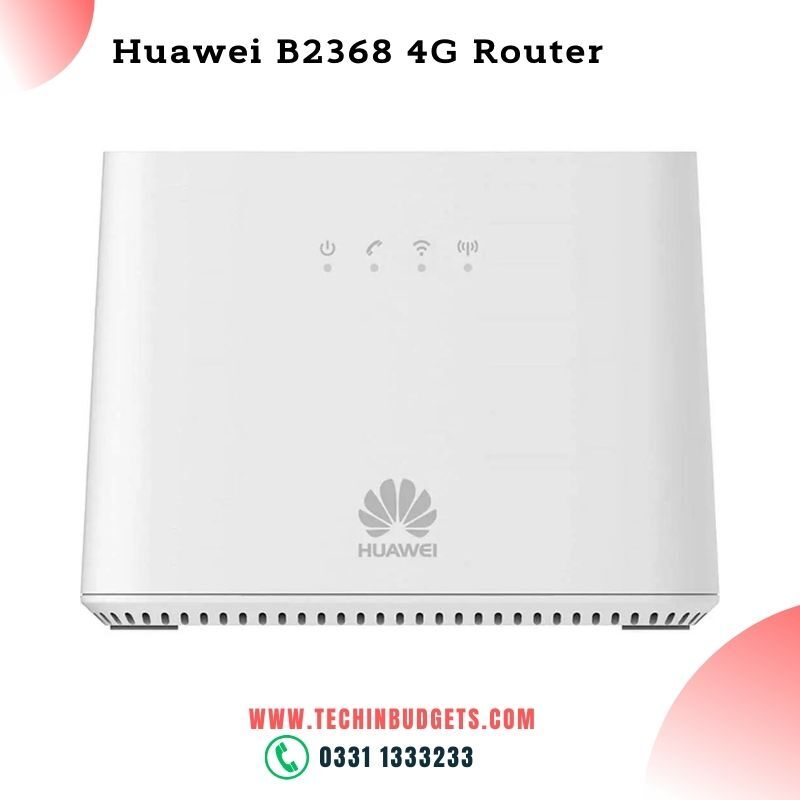

Huawei B2368-66 4G LTE CPE Router

The HUAWEI LTE CPE B2368-66 (hereinafter referred to as B2368) is a LTE wireless gateway for multiple users.

B2368 supports LTE (Long Term Evolution) 3GPP Release 12 with UE uplink Cat 13 and downlink Cat 12.

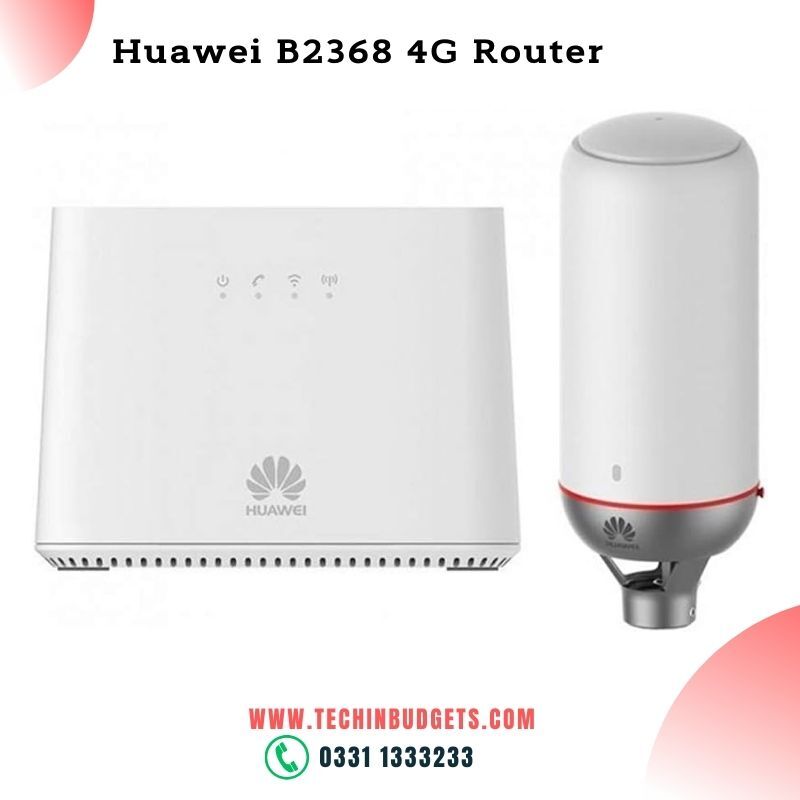

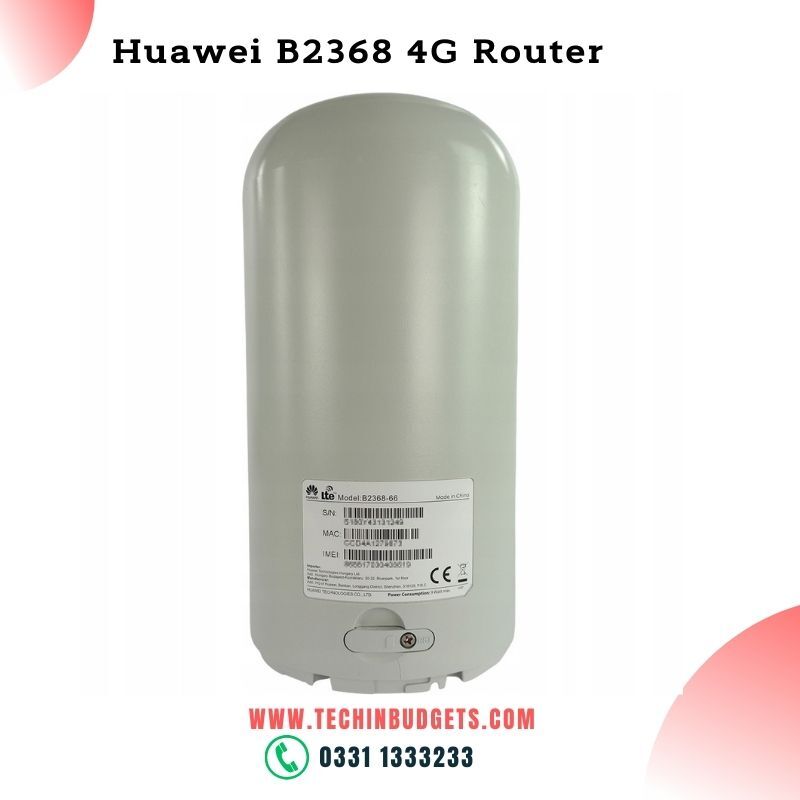

There are two part (ODU and IDU) in B2368-66, ODU is for LTE wireless access, IDU is to provide router and WiFi functionality. The supported service functions are as follows:

• Data service
• VoIP service
• Security Service
• Wi-Fi Service
• L2/L3 VPN Service
• IP pass-through
• Multi-APN
• Local maintenance management function
• Firmware over the air (FOTA)

The main features of B2368-66 are listed as follows:

LTE connectivity with DL 4x4MIMO + 2CC CA and UL 2CC CA + 64QAM

• Supports LTE TDD DL 4x4MIMO and DL 2CC up to 40 MHz contiguous or non-contiguous carrier aggregation.
• Supports LTE FDD 4x4MIMO (Band3/7), 2×2 MIMO(Band 1/8/20)
• Supports LTE FDD+TDD 2CC up to 40MHz CA,FDD 4x4MIMO(Band3/7), TDD 4x4MIMO
• Supports LTE FDD/TDD UL 2CC up to 40 MHz contiguous or non-contiguous (inter-band) carrier aggregation and UL 64QAM.

 High speed experience

• Supports LTE UE uplink category 13 and downlink category 12.
• Supports a maximum throughput of 420 Mbit/s in the downlink and 30 Mbit/s in the uplink when TDD subframe configuration 2 is used.
•  Supports a maximum throughput of 584 Mbit/s in the downlink and 150 Mbit/s in the uplink for FDD.

Three port Gigabit Ethernet (GE) switch

• Supports wired LAN connectivity with rate auto-negotiation and medium dependent interface crossover (MDIX) auto-detection.

Wireless LAN access point

• Supports wireless LAN (WLAN) connectivity with an integrated 802.11ac/b/g/n access point.
• Supports 802.11 security mechanisms, such as WPA, and WPA2.

Voice over IP (VoIP)

•  Supports high-quality voice services over the telephony interface in compliance with the Simple Internet Protocol (SIP).
• Supports one line of voice and connection to another integrated access device (IAD) to obtain more voice ports. Supports multiple APNs, with one APN for VoIP.

* This feature need to be IOT Flexible networking capabilities
