Description

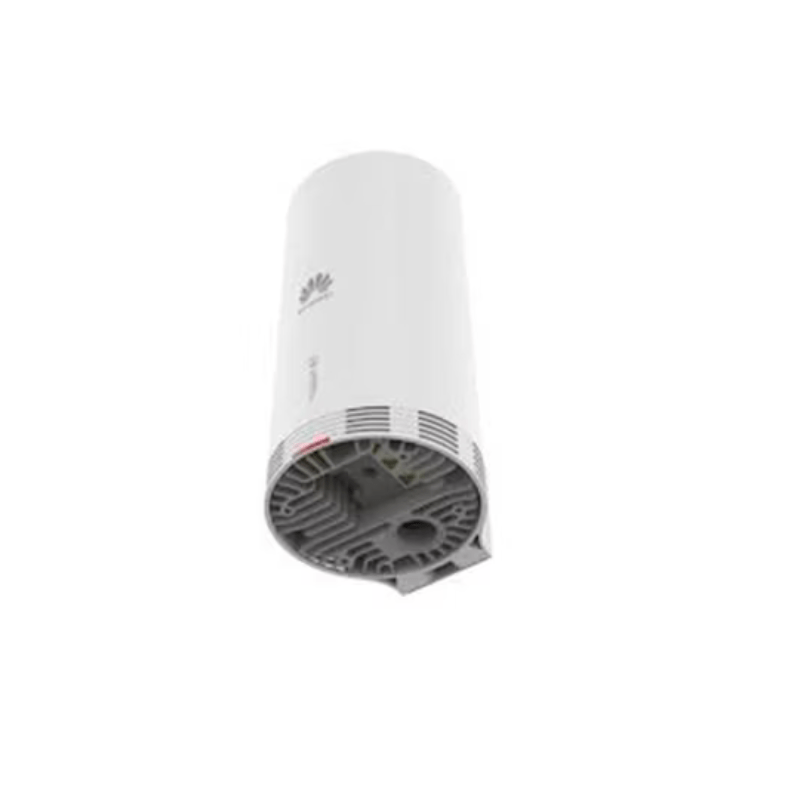

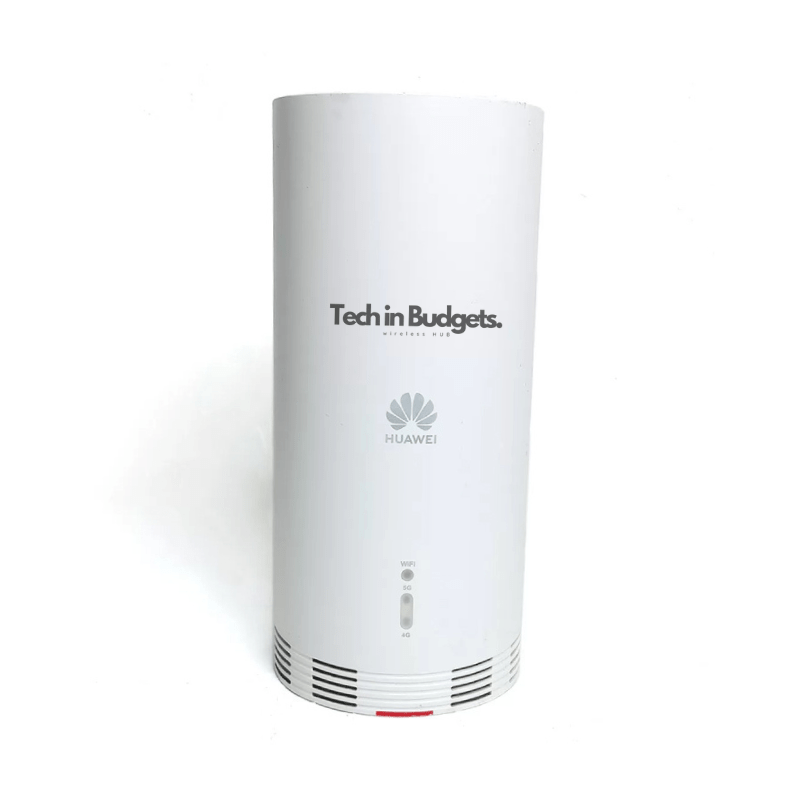

Huawei 5G Outdoor CPE N5368X

Huawei 5G CPE N5368X is an advanced 5G all-scenario wireless broadband access device designed to provide seamless network connectivity for various household terminals. It converts 5G signals into WLAN signals for wireless access and into Ethernet data for wired access, catering to the needs of home users. The device also serves as an anchor point for mobility management and coverage, supporting 5G access in both NSA (Non-Standalone) and SA (Standalone) network configurations.

Huawei 5G CPE N5368X Specifications:

Product Type:

• 5G Outdoor CPE (Customer Premises Equipment)

Operating Frequency Bands:

• 5G NR: n78, n77, n41, n38
• LTE FDD: Band 1, Band 3, Band 7, Band 8, Band 20, Band 28
• LTE TDD: Band 38, Band 40, Band 41, Band 42, Band 43
• WLAN: 2.4 GHz, 5 GHz
• Note: Supported frequency bands may vary by region. The n78 band operates in the range of 3400–3800 MHz.

Maximum Transmit Power:

• 5G NSA (Non-Standalone): 23 dBm (1T)
• 5G SA (Standalone): 26 dBm (2T)
• LTE: 23 dBm
• ODU WLAN 5 GHz: 14 dBm
• ODU WLAN 2.4 GHz: 16 dBm
• Note: Maximum transmit power for WLAN varies by region.

Vendor Model:

• HW-190126D0D

Power Specifications:

• Output Voltage: 19 V ± 5%
• Output Power: 24 W

High-Speed Data Rates and Large Bandwidth:

• For NSA Network:
  • Download: Up to 1.5 Gbps
  • Upload: Up to 110 Mbps
• For SA Network:
  • Download: Up to 1.5 Gbps
  • Upload: Up to 220 Mbps

High-Rate WLAN Access (Routing Mode):

• Maximum Devices Connected: 32 devices (2.4 GHz and 5 GHz bands)
• Maximum Speed at 2.4 GHz (IEEE 802.11n): 300 Mbps
• Maximum Speed at 5 GHz (IEEE 802.11ac): 867 Mbps

Interfaces:

• 1 x NANO SIM card slot
• 1 x LAN port
• 1 x Power/LAN port

Additional Features:

• Supports IP address, MAC address, and URL filtering
